Results post-processing

OMADS can save the full evaluation history in a CSV file and the poll points of each iteration in a JSON file, which can later be used to visualize the poll trajectory in 2D. Both are written under param["post_dir"]; see Outputs for the complete file layout.

Evaluation history

Set options["save_results"] to True to write one row per evaluation to <post_dir>/<name>_run/<name>_all.out. The script below runs MADS, loads the file with pandas, prints its first rows and plots the best objective value against the number of evaluations:

Listing 17 postprocessing.py

"""Save the evaluation history and plot the convergence."""
import numpy as np
import pandas as pd
from OMADS import mads, poll


def rosenbrock(x):
  x = np.asarray(x)
  return [np.sum(100.0 * (x[1:] - x[:-1] ** 2) ** 2 + (1 - x[:-1]) ** 2), [0]]


data = {
    "evaluator": {"blackbox": rosenbrock},
    "param": {"name": "rosen_hist", "baseline": [-2.0, -2.0], "lb": [-5, -5],
              "ub": [10, 10], "var_names": ["x1", "x2"], "scaling": [15.0, 15.0],
              "post_dir": "./post"},
    "options": {"seed": 0, "budget": 1000, "tol": 1e-9,
                "check_cache": True, "store_cache": True, "rich_direction": True,
                "save_results": True},
    "search": {"type": "sampling", "s_method": "ACTIVE", "ns": 10},
}

if __name__ == "__main__":
  mads.main(data)

  df = pd.read_csv("post/rosen_hist_run/rosen_hist_all.out", skipinitialspace=True)
  df.columns = df.columns.str.strip()
  df["best"] = df["fobj"].cummin()
  print(df[["Iteration", "Step", "Status", "fobj", "best", "x1", "x2"]]
        .head(6).to_string(index=False))
  print("rows:", len(df), "| evaluations by step:",
        df["Step"].str.strip().value_counts().to_dict())

  try:
    import matplotlib
    matplotlib.use("Agg")
    import matplotlib.pyplot as plt
    fig, ax = plt.subplots(figsize=(6, 3.5))
    ax.semilogy(np.arange(1, len(df) + 1), df["best"] + 1e-16)
    ax.set_xlabel("evaluation")
    ax.set_ylabel("best f")
    fig.tight_layout()
    fig.savefig("post/rosen_convergence.png", dpi=120)
  except ImportError:
    pass

  # Poll trajectory for animations (poll.main only)
  data["options"]["save_coordinates"] = True
  poll.main(data)
  print("coords.json written to post/rosen_hist_run/")

 Iteration    Step   Status         fobj        best    x1    x2
         0 Poll_2n FEASIBLE  3609.000000 3609.000000 -2.00 -2.00
         0 Poll_2n FEASIBLE 14416.000000 3609.000000 -3.00 -3.00
         1 Poll_2n FEASIBLE 12116.000000 3609.000000 -3.00 -2.00
         1 Poll_2n FEASIBLE  5357.828125 3609.000000 -2.25 -2.25
         2 Poll_2n FEASIBLE  4317.203125 3609.000000 -2.25 -1.50
         2 Poll_2n FEASIBLE  3101.703125 3101.703125 -1.75 -2.50
rows: 223 | evaluations by step: {'Search': 164, 'Poll_2n': 59}
coords.json written to post/rosen_hist_run/

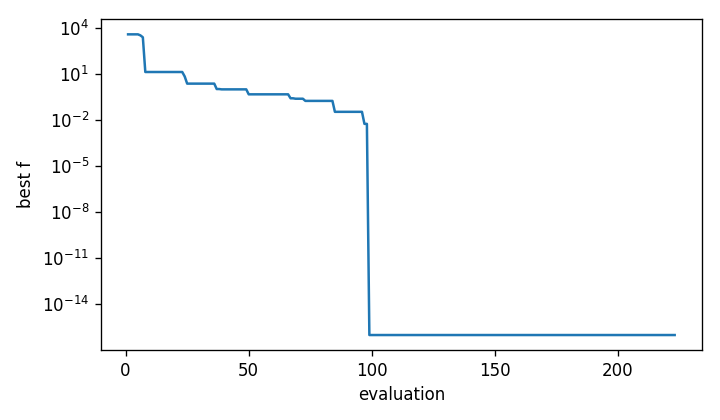

Figure 7 Best objective value against the number of evaluations (Rosenbrock, mads.main).

Rows labelled Search include the model-search points. On this problem they account for most of the progress.

Coordinates JSON file

With options["save_coordinates"] set to True, poll.main writes <post_dir>/<name>_run/coords.json. It holds, for every iteration, the coordinates of the evaluated poll points and the incumbent:

{
  "1": {
    "coord": [[-3.0, -3.0], [-3.0, -2.0]],
    "iter": 1,
    "x_incumbent": [-2.0, -2.0]
  },
  "2": {
    "coord": [[-2.25, -2.25], [-2.25, -1.5], [-1.75, -2.5], [-1.75, -1.75]],
    "iter": 2,
    "x_incumbent": [-2.0, -2.0]
  }
}

A minimal animation of the poll trajectory with matplotlib:

import json
import matplotlib.pyplot as plt
from matplotlib.animation import FuncAnimation

with open("post/rosen_hist_run/coords.json") as f:
    frames = list(json.load(f).values())

fig, ax = plt.subplots()
ax.set_xlim(-5, 10)
ax.set_ylim(-5, 10)
polls, = ax.plot([], [], "o", ms=4)
center, = ax.plot([], [], "r*", ms=10)

def draw(frame):
    xs, ys = zip(*frame["coord"])
    polls.set_data(xs, ys)
    center.set_data([frame["x_incumbent"][0]], [frame["x_incumbent"][1]])
    ax.set_title(f"iteration {frame['iter']}")
    return polls, center

FuncAnimation(fig, draw, frames=frames, interval=150).save("poll.gif")

Note

save_coordinates is supported by poll.main. With mads.main it raises an IndexError at the end of the run in this release.
