OMADS: Optimization using Mesh Adaptive Direct Search#

Author: Ahmed H. Bayoumy
Release: 2610
Source: Ahmed-Bayoumy/OMADS
DOI: 10.5281/zenodo.23407559

Overview#

OMADS is a Python implementation of the Mesh Adaptive Direct Search (MADS) algorithm [Audet and Dennis, 2006] for blackbox optimization. It addresses problems of the form

\[\min_{x \in \Omega} f(x), \qquad \Omega = \{x \in X : c_j(x) \le 0,\; j = 1,\dots,m\}, \qquad X = \{x \in \mathbb{R}^n : \ell \le x \le u\},\]

where the objective \(f\) (scalar- or vector-valued) and the constraints \(c_j\) are available only through evaluation: no derivatives are provided, and the functions may be non-smooth, noisy, expensive, or undefined at some points. MADS is a direct search method with a convergence analysis based on the Clarke nonsmooth calculus. OMADS combines it with a progressive barrier, a granular mesh, a quadratic-model search and a density-guided sampling search.

Main features#

Three solvers sharing one input format: the complete algorithm (mads), the poll step alone (poll), and the search step alone (search).
Orthogonal poll directions derived from Householder matrices, with \(2n\) (ORTHO_2N) or \(n+1\) (ORTHO_N+1) directions [Audet et al., 2014].
The classical orthogonal mesh and the anisotropic granular mesh [Audet et al., 2019].
Constraint handling by the progressive barrier and the extreme barrier [Audet and Dennis, 2009], with primary and secondary frame centres.
A speculative step and a constraint-aware quadratic model search at every iteration [Conn and Le Digabel, 2013].
An adaptive sampling search based on a bi-population tree-structured Parzen estimator (BiTPE), with Halton, Latin hypercube, simulated annealing and particle swarm alternatives.
Multi-objective (Pareto) studies assessed by the hypervolume indicator.
Evaluation cache, opportunistic strategy, parallel evaluation, CSV logs and reproducible random seeds.

Minimal example#

import numpy as np
from OMADS import mads

def rosenbrock(x):
    x = np.asarray(x)
    f = np.sum(100.0 * (x[1:] - x[:-1] ** 2) ** 2 + (1 - x[:-1]) ** 2)
    return [f, [0]]              # [objective, list of constraints c(x) <= 0]

data = {
    "evaluator": {"blackbox": rosenbrock},
    "param": {"name": "rosen", "baseline": [-2.0, -2.0], "lb": [-5, -5],
              "ub": [10, 10], "scaling": [15, 15], "post_dir": "./post"},
    "options": {"seed": 0, "budget": 1000, "tol": 1e-9, "rich_direction": True,
                "store_cache": True, "check_cache": True},
    "search": {"type": "sampling", "s_method": "ACTIVE", "ns": 10},
}

out, *_ = mads.main(data)
print(out["xmin"], out["fmin"])  # [1.0, 1.0] [0.0]  (223 evaluations)

Organization of this documentation#

Getting started: Installation, a first run, and the structure of the input.
Background: Definitions, convergence-related concepts and the algorithms implemented in OMADS, given as pseudocode.
Benchmarking: The regression suite and the COCO bbob-constrained experiment.
Tutorials: Worked examples: test functions, constrained and multi-objective problems, external simulators, parallel evaluation and post-processing.
Configuration reference and Outputs: Complete description of the input keys, their defaults, and the files produced by a run.
API reference: Reference of the solver entry points and of the classes behind them.

Multi-objective results#

The figures below show Pareto fronts obtained by OMADS on constrained (top) and unconstrained (bottom) bi-objective test problems from the literature.

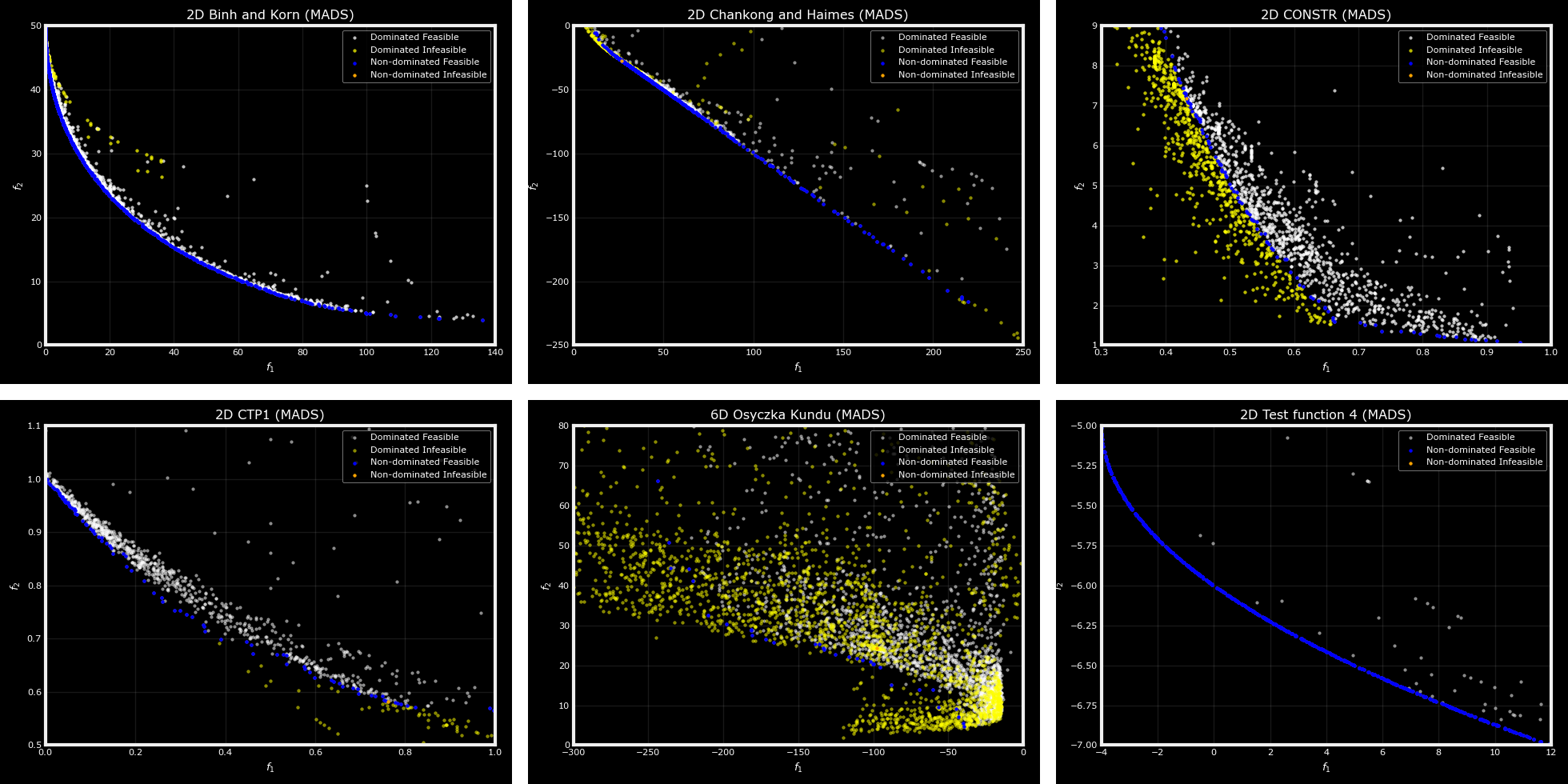

Pareto fronts on constrained bi-objective test problems

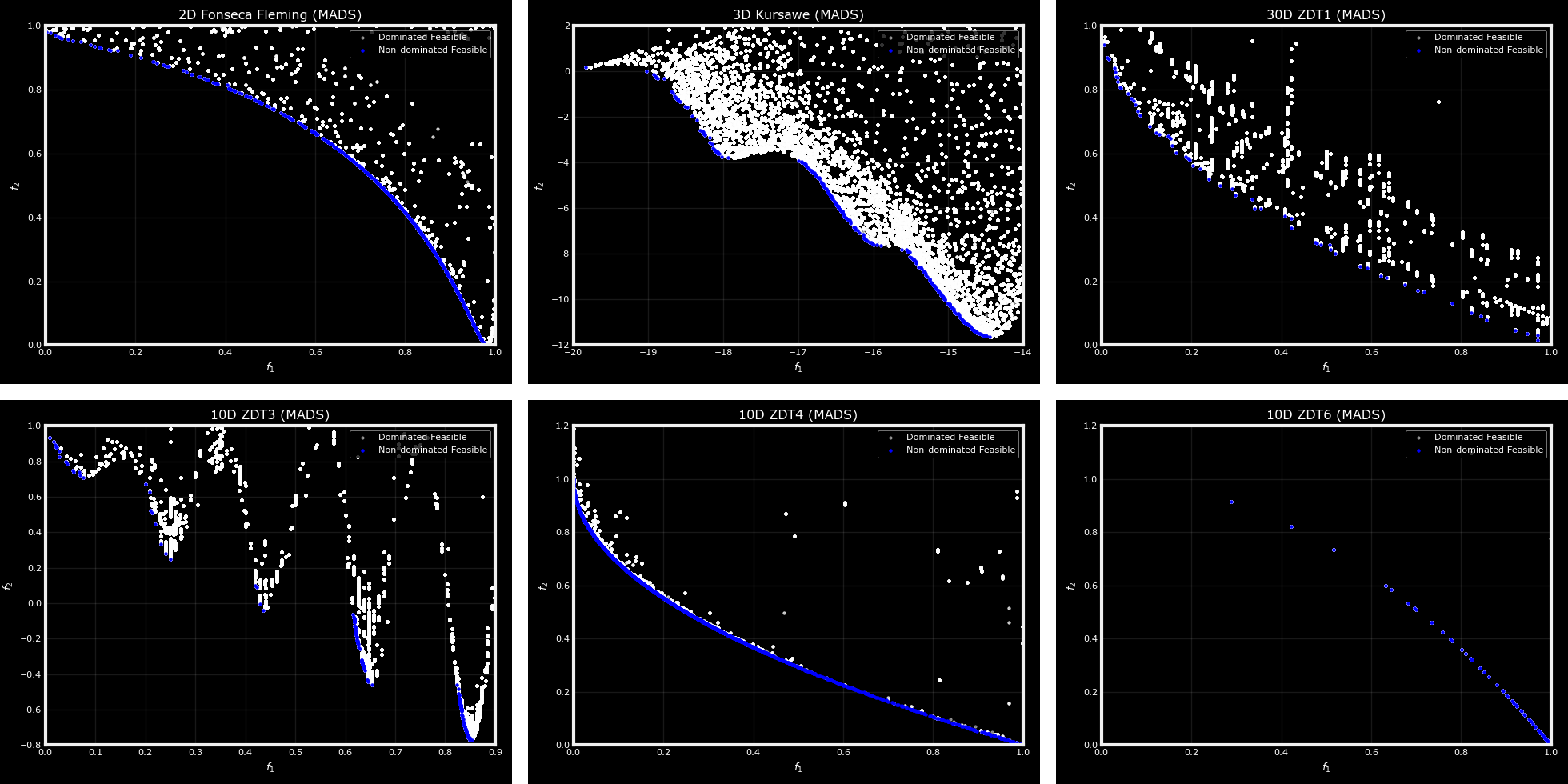

Pareto fronts on unconstrained bi-objective test problems

Citation#

If OMADS contributes to published work, please cite it as follows.

@software{OMADS_AB,
  author    = {Bayoumy, Ahmed H.},
  title     = {OMADS: Optimization using Mesh Adaptive Direct Search},
  year      = {2022},
  publisher = {GitHub},
  version   = {2610},
  doi       = {10.5281/zenodo.23407559},
  url       = {https://github.com/Ahmed-Bayoumy/OMADS}
}
